Piston Rings

Automotive Car Engine Piston Rings How ToAutomotive Car Engine Piston Rings How ToAutomotive Car Engine Piston Rings How To

Contributed By: Wesly B.

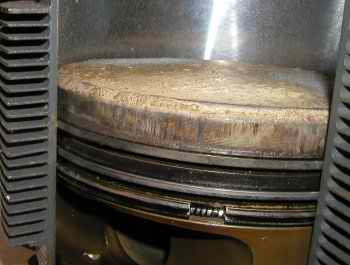

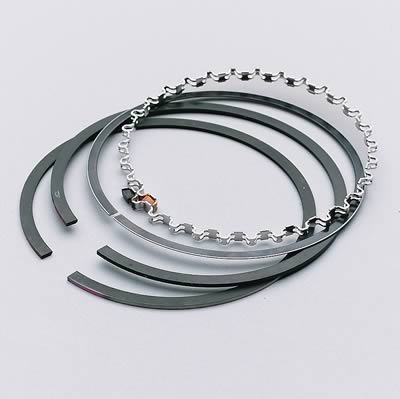

Piston rings are made to maintain the cylinder and combustion pressure of the automobile. They prevent any oil from seeping into the combustion chamber as well as sealing in the air and fuel to be able to compress them. There are typically three piston rings to every piston, and each one of these rings does different things to help the engine operate.

Automotive Car Engine Piston Rings How To

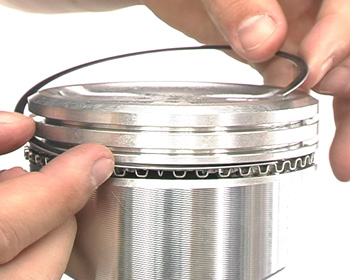

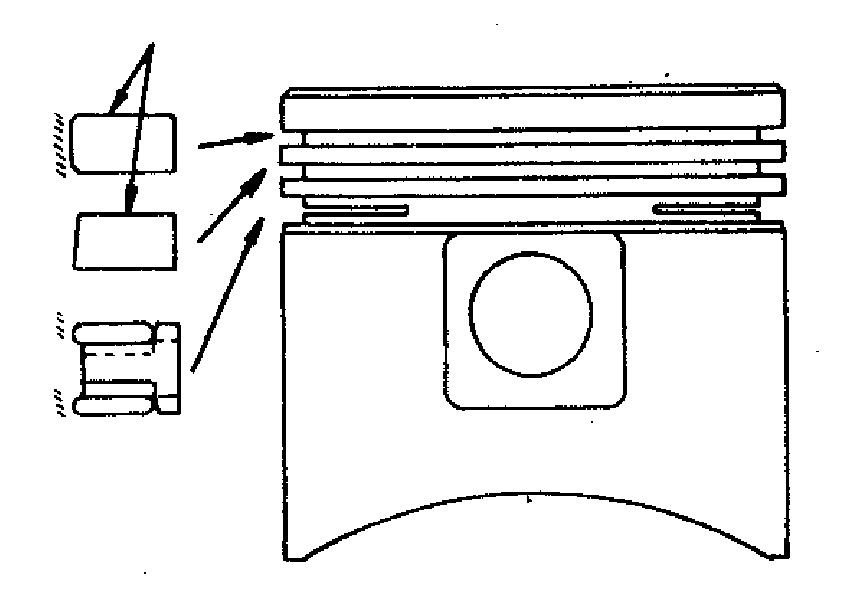

The first ring is known as the top ring; also know as the compression ring. This ring helps the piston work, because during the combustion process it doesn’t allow it to lose any pressure. This ring maintains any pressure build up as the piston arrives at the top of the stroke. This is possible because the top ring acts as a barrier.

The second ring is also known as the secondary compression ring. This ring is a back up compression ring with a slightly tighter tolerance to help the top compression ring in sealing the combustion chamber.

Automotive Car Engine Piston Rings How To

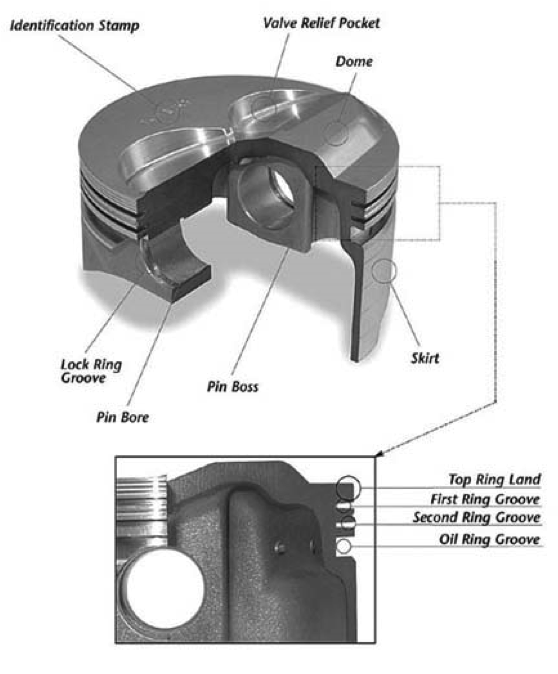

The last ring is called the oil ring. These work with the piston in the engine to lubricate the cylinder, walls, pistons, rings, and wrist pins. This ring keeps the oil out of the combustion process. The oil rings also help the thermal control because it cools the piston by directing oil around it. The piston rings are located on the piston. The piston is located in the cylinder, and multiple cylinders are usually arranged side by side in a bank. This bank is known as the engine block.

Automotive Car Engine Piston Rings How To
