Turbo Sizing Chart for Mitsubishi / Greddy Turbochargers

Contributed by: ztech

Here's a comparison chart of turbo compressor wheel and turbine wheel. Not necessarily sorted by size and power. I did not list the horsepower rating of the turbos. It depends many variables. I only listed the compress flow in CFM. Some cfm listed are max flow. Others are listed at 2 pressure ratio (PR) or at 14.7psi at sea level. As new turbo kits coming out, if you have the specs (major and minor of compressor and turbine wheels) and compressor maps and want to post them here, send me an email. Note: some turbos come as a bolt-on kit. Some do not, marked by '*'. Specs are not limited to the chart listed below for those none-bolt-on turbos.

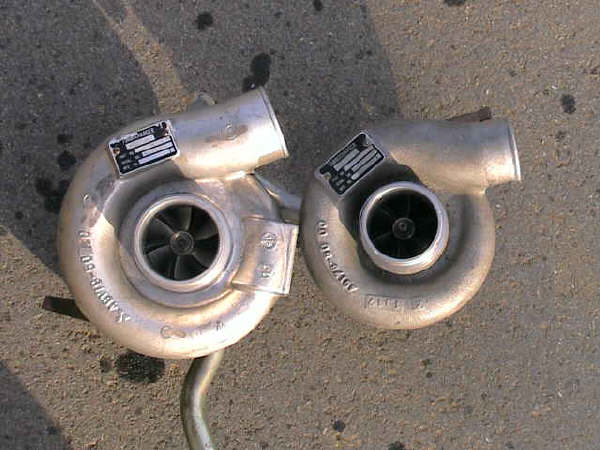

TD06 and TD05

Td05 vs td06

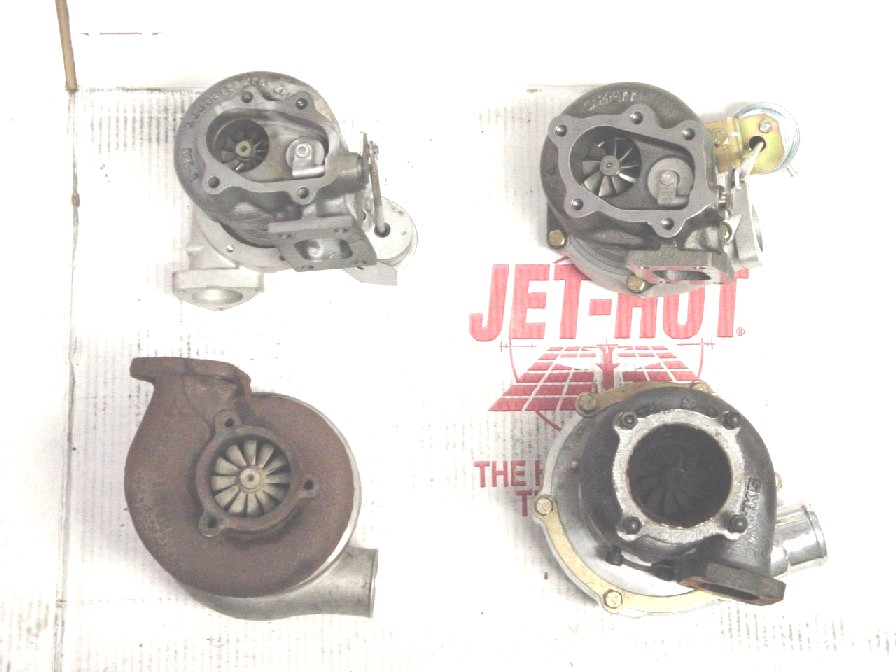

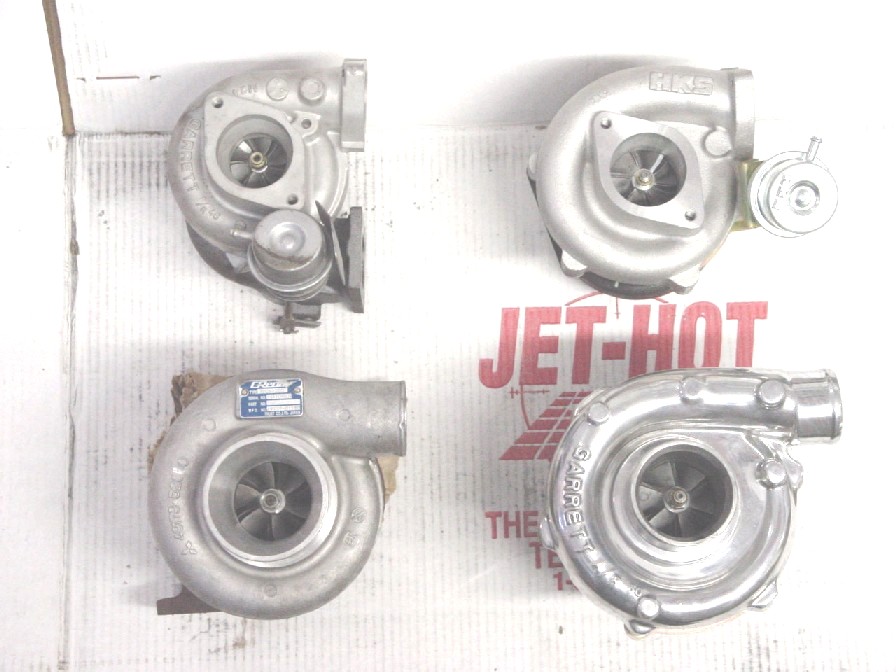

Compressor side: Stock vs 2540 vs TD06-20G vs 2835

Stock vs 2540 vs TD06 20G vs 2835 turbo charger sizing chart



Turbine side

Turbine side of td06 20g mitsubishi greddy turbo

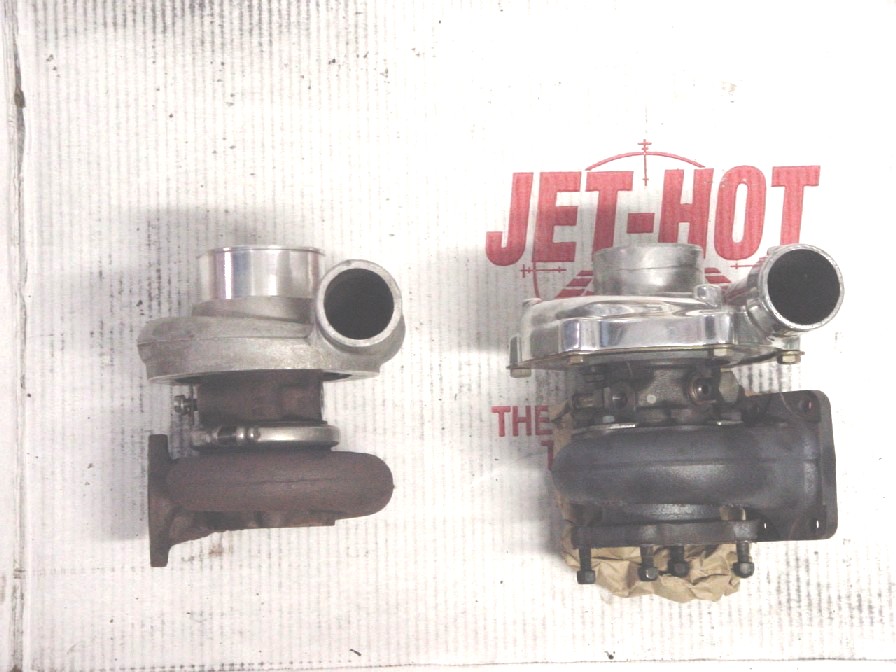

compressor outlet: TD06 vs 2835

Compressor Outlet TD06 20G vs 2835 mitsubishi greddy turbo sizing chart





Getting this chart to re-size itself is proving to be a nightmare for us here. We appoligize. Ahead of time.





Turbo Compressor Turbine

Wheel Trim

map avail

Inducer
Diameter
(in./mm)
Exducer
Diameter
(in./mm)

Housing



CFM



Wheel

Trim

Exducer
Diameter
(in.)
Inducer
Diameter
(in.)

 Flange   style,

Housing size

Stock TB02/22

T2

1.57"/40mm

2.02"/51mm

TB22

304

max

T22

69

1.53"/38.9mm

1.85"/47mm

T25

Garrett T25

T25

60

1.66"/42mm

2.14"/54.4mm

TB25

405

max

T25

62

1.64"/41.7mm

2.09"/53mm

T25

Garrett T28

T3

60

1.83"/46.5mm

2.37"/60mm

TB03

448

max

T25

62

1.64"/41.7mm

2.09"/53mm

T25

JWT 500



1.53"/38.9mm?

2.06"/52mm?

TB22



T25

1.59"/40.4mm

1.83"/45.7mm

T25

JWT 530BB

GT25R/GT2554R

GT25R

60

1.65"/42mm

2.14"/54.3mm

GT25R



GT25

62

1.64"/41.7mm

2.09"/53mm

T25

.64 A/R

JWT 600

T3?

60?

1.83"/46.5mm

2.37"/60mm

TB25





1.86"/47.2mm

2.09"/53mm?

T25

JWT 650

T3

63

1.89"/48mm

2.37"/60mm

T3

506

max

T3

1.86"/47.2mm

2.09"/53mm

T25

JWT 700 BB

GT28RS/GT2860R

GT28RS

62

1.86"/47.2mm

2.37"/60mm

GT28RS

535

max

GT28

76

1.85"/46.9mm

2.09"/53.9mm

T25

.86 A/R

GT2871R

GT2871R

48

1.94"/49.2mm?

2.79"/71mm?

GT28RS

599

max

GT28

76

1.85"/46.9mm

2.09"/53.9mm

T25

.86 A/R

PE

1420

?

57

1.79"/45.5mm

2.37"/60mm

?

494

max

P20

84

1.73"/44

1.89"/48mm

?

PE

1820

?

55

2.07"/52.5mm

2.76"/70mm

?

635

max

P20

84

1.74"/44.7

2.047"/52mm

?

Greddy TD04H-15C

15C

55

1.65"/42mm

2.187"/55.5mm

TD04



TD04H

1.74"/44.7

2.047"/52mm

TD04H

3bolt

Greddy TD05-16G

16G

60

1.83"/46.5mm

2.236/57mm

TD05

520

@2PR

TD05H

1.93"/49mm

2.20"/56mm

TD05H

6,7,8cm2

3bolt

Greddy TD05-18G

18G

50

1.99"/50.5mm

2.68/68mm

a*

?

@2PR

TD05H

1.93"/49mm

2.20"/56mm

TD05H

6,7,8cm2

3 bolt

b* Greddy TD06-20G

20G

60

2.07"/52.6mm

2.68"/68mm

TD06

685

max

TD06S

2.17"/55.1mm

2.56"/65mm

TD06S

8,10cm2

3 bolt

HKS GT2530

GT28RS

63

1.90"/47.7mm

2.37"/60mm

T3

63

477

max

GT25

1.85"/47mm

2.12"/54mm

T25 .64  A/R     T3

HKS GT2540

T04E

46

2.1"/51.7mm

3"/76mm

To4E

46

564

@2PR

GT25

1.85"/47mm

2.12"/54mm

.64 A/R

b*HKS GT2835 d*

GT35

52

2.01"/51.2

2.79"/71mm

GT35

608

max

GT28

2.01"/51.8mm

2.23"/56.5mm

T25

.61, .73

c*HKS GT3037 d*

GT37

52

2.17"/55mm

3.00"/76mm

GT37

709

max

GT30

2.16"/55mm

2.36"/60mm

T25



Garrett GT3071R

GT37

56

2.08"/53mm

3.00"/71mm

GT37

694

max

GT30

2"/50.8mm

2.22"/56.5mm

T25 flange

.86 A/R

Garrett GT3076R

GT30R

56

2.24"/57mm

3.00"76.2mm

GT37

752

max

GT30

2.16"/55mm

2.36"/60mm

T3flange

.82, 1.06 A/R

*Turbonetics T3/To4B

To4B

S

1.90"/48.2mm

2.75"/70mm

To4B

S

520

@2PR

T3

2.05"/52.1mm?

2.35"/59.7mm?

T3

*Turbonetics T3/To4E

To4E 60

2.29"/58.2mm

2.95"/75mm

To4E

60

650

@2PR

T3

2.05"/52.1mm?

2.35"/59.7mm?

T3
